1. Keywords and features

• OpenStreetMap (OSM) with MapImages (Drone images, aerial photography, Google Earth, ...)
  • Import images(.jpg, .png), GPS trace (.gpx), measurement (.kml), MapImages(.kmz)
• Added Import drone images
  • Supported DJI Mavic, Parrot Bebop2, etc. Setup Drone Images path
  • Image(JPG) info: location, altitude, direction to north, camera direction
  • Supported Gimbal Pitch Degree 45-90

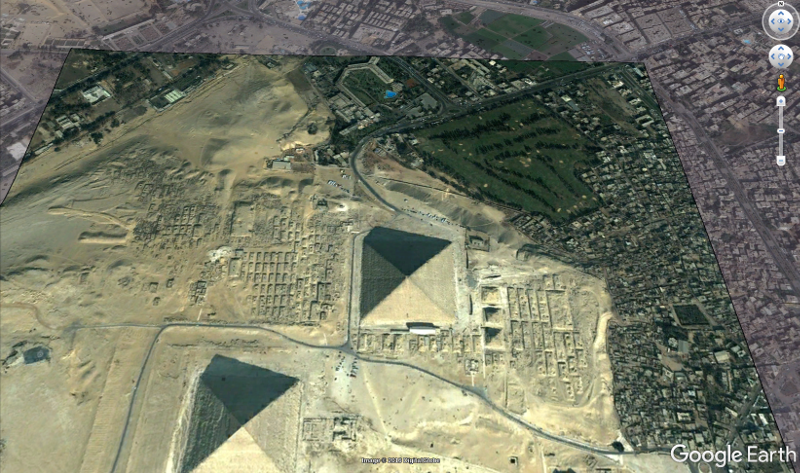

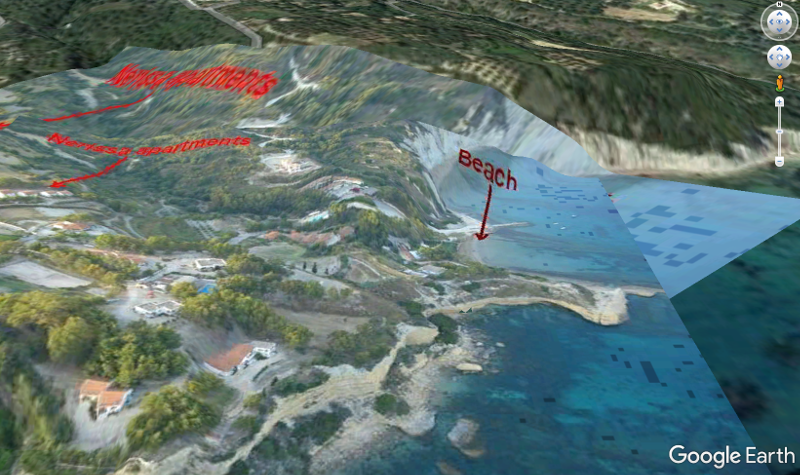

  • Export MapImages (.kmz) into Google Earth
• Archive points, lines, areas and MapImages
• (B) MapImages Editor: move, rotate, distort and delete images, change scale and transparency
• (B) MapImages sharing
• Add and (B)share your points
• Use with a navigator (Google, Waze,...)
• (B) Measurement: You can measure distance and save GPS directions to your destinations on your map (.kml)

N.B.: (B) Options indicated will only be available after the paid upgrade

• Main menu:(i)Vorona Map ver.xx.xx.xx:
  • Buy - Buy in Google Play Store. Android Market allows you to install purchased apps on all of your devices without having to buy them again.
  • Buy with BTC – there’s a transaction fee of 10.00 EUR. If you buy with BTC, the service will be provided free of charge for 10 days. If you purchase one of Vorona services, all of the other services (Vorona Bebop, Vorona Dji, Vorona Map,...) are free. You can only purchase it with Bitcoin. The license number can only be activated on one device.

Shared MapImages Web interface: http://androt.xyz/voronamap/kmz
Ask for more information support@androt.xyz
Downloading from Google Play (search: Vorona map)



2. Main buttons

Buttons appear when you touch the screen and disappear again after 3 seconds.


(B) Launch GPS measurements





(B) Launch MapImages Editor






Main Menu


N.B.: You can only work with one option at a time (either GPS measurements or MapImages Editor).


2.1. Main Menu



Open



Main Menu







2.1.1. Search

Address, place name, etc. - you can look for addresses, places, my points, shared points, shared MapImages, etc.  To search, enter at least 4 characters of a place name or address, and choose from the list. If necessary, change the zoom level of the map

• (B) Shared MapImages - My shared MapImages
  • Search shared maps - you can also look for shared MapImages
  • in viewport you can set up screen (map area) filter
  • Locate all - shows all of your MapImages locations on the map
  • Rename - rename MapImage
  • Locate - displays MapImage locations on the map

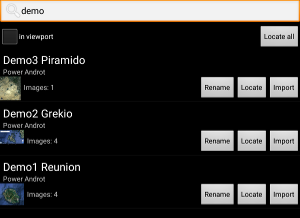

  • Import - you can import shared MapImages (search and import: Demo1 Reunion, Demo2 Grekio, Demo3 Piramido)

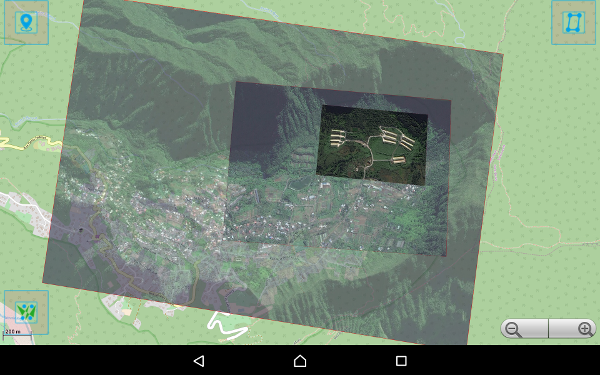

Demo1 Reunion


(B) Show my shared points – displays your shared points on the map. Shared points are represented by this icon (red, green, blue), time and memo. Shared points are visible for 10 days.

Clear - removes all temporary objects from the map (it does not delete objects)

• Searches – deletes searched history
• (B) Shared points – deletes shared points

2.1.2. Position

• Launch GPS/measurement - GPS location is displayed on the map. After the GPS launch: a)(B)GPS buttons appear offering to save the route and area (see clause 2. GPS & measurement), as well as b) new menu options:
  • End GPS/measurement
  • (B) Share my point – shares your location. All places are saved for 10 days
• Home – displays your Home location on the map. You can set up Home location in Map menu (New home)
• Last search or import – returns the map to the last searched or imported location
• Navigate chosen point – launches navigator

2.1.3. Preferences

• Layers: set up Map layers
  • My points
  • Imports - Imported files (.kml, .gpx)
  • Measurements - Measured areas and routes
  • MapImages - Images added to the map
• Maps:
  • Map generator
  • Screen orientation: Auto, Landscape(default), Portrait
• GPS: Measurement settings
  • Measurement frequency - 1,3,5,10,30 sec.
  • Allowed min distance - 0,1,2,3,4,10 m
  • Allowed accuracy - 5,8,15,30,50,100 m
  • Area measurement - (on/off)
  • Manual mode - (on/off) (see clause 2.2.3. Manual measuring)
• +Drone images:
  • Folder - Setup Drone Images path. Default DJI drones(Mavic)
  • Realtime drone images import - This service imports in realtime new drone images to the map

2.1.4. Info (Vorona Map version)

• Import – imports map data
  • Images(jpg, png) drone photos, satellite photos, Google Maps
  • Google Earth (.kmz) and Vorona MapImage (xyz.androt.vorona/map/export/kmz)
  • Measurement (lines, areas) files (.kml) (xyz.androt.vorona/map/export/kml/)
  • GPS data .gpx (lines)
• +Import drone images
  • Drone (DJI Mavic, Parrot Bebop2,...) images import. NB! Before user have to set up drone files path (Preferences: Drone Images: Folder).
• Delete - remove layers
  • My points - remove all of my points (location icon in red, yellow and blue)
  • Imports - remove all imported .kml and .gpx data (yellow area)
  • MapImages - remove all of my images
  • Measurements - remove all of my measurements (violet line, area)
  • Map cache - Map cache memory is cleared. It is required to clear cache if the OSM map is missing or displayed incorrectly
• Archive
  • Points, lines, areas - Archive data added to the map. The data will not be deleted.
  • ...Manage - Find Archive, Restore, Rename, Delete. Archived data can be [Renamed], [Deleted], and added to the map [Restored]. Restore adds new objects and restores old objects
  • MapImages - archives all attached MapImages. Data is saved to the file /images/archive (vorona_yy_mm_dd_hh_mm_ss.vorona|name.vorona))
  • ...Manage - Restore, Rename, Delete. Archived data can be [Renamed], [Deleted], and added to the map [Restored]. Restore adds new objects and restores old MapImages
• Cache
  • Clear cache - Map cache memory is cleared. It is required to clear cache if the OSM map is missing or displayed incorrectly.
  • Save – saves the map to the clipboard. Map cache is used when the device is offline (xyz.androt.vorona/map/cache/cache_Datetime.zip)
  • Manage - Map cache manager: Restore, Rename, Delete
• Buy Google Play - Buy in Google Play Store. Android Market allows you to install purchased apps on all of your devices without having to buy them again.
• Buy BTC – there’s a transaction fee of 10.00 EUR. If you buy with BTC, the service will be provided free of charge for 10 days. If you purchase one of Vorona services, all of the other services (BB Vorona, Vorona Dji, Vorona Map,...) are free. You can only purchase it with Bitcoin. The license number can only be activated on one device.We will send you an email with a BTC payment link. Services are automatically activated after the BTC payment is confirmed.
• +Account - Login, Create, Reset. By login you can join different devices into one account. Shared MapImages web interface: http://androt.xyz/voronamap/kmz
• Help
• Privacy & Terms

How to use Bitcoin (BTC)

Coinbase is a good place to start when buying bitcoins https://www.coinbase.com/.
It is the world's largest platform for buying and selling Bitcoin for EUR,US dollars at the current market rate. The Coinbase online wallet offers a place to securely store your Bitcoin and send/ receive Bitcoin with minimal to no fees.

2.2. GPS & measurement

Clik

to launch GPS measurement and click

to end it

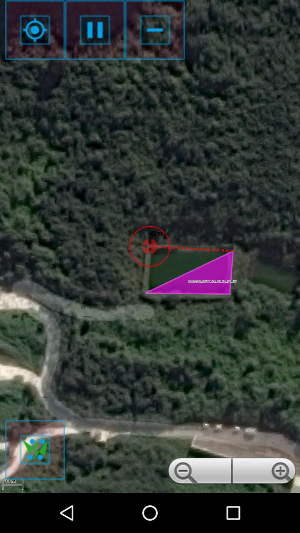

1. Center the map on your GPS location, 2. Save GPS route

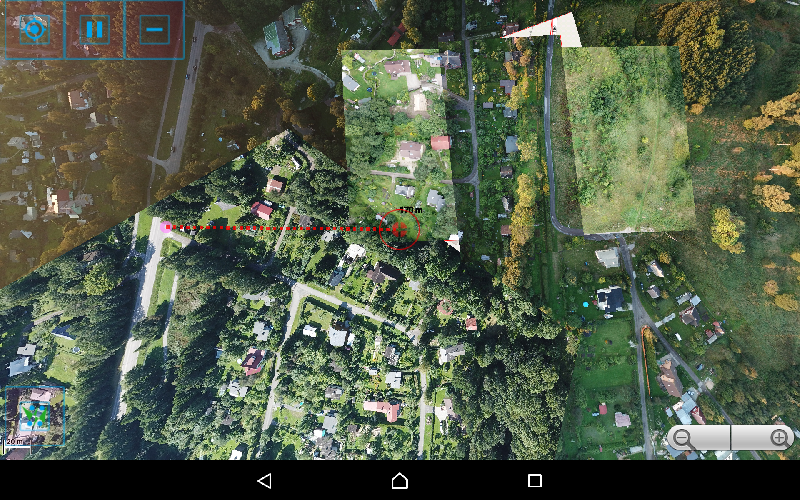

1. Center the map on your GPS location, 2. Put measurement on hold, 3. Manually add a new GPS point, 4. Delete the last point

1. Center the map on your GPS location, 2. Continue measuring, 3. Finish measuring and save/delete data

2.2.1. GPS settings

• Measurement frequency is used to place points according to your current GPS position at certain time intervals: 1, 3, 5, 10, 30 sec.;
• Allowed min distance is used to place points according to your current GPS position at certain distance intervals. Setting it up at 1-2 m eliminates GPS errors
• Allowed accuracy – choose admissible GPS error from 1-100 m. Best to set it up to 3m for measurements. GPS accuracy may change during the measurement. Most of the GPS devices admissible measurement error is 3-4 m. If you set admissible error to 1m, then the error zone is usually larger, and you will have to add points manually [+]
• Area measurement - (on/off) Area or route measuring mode
• Manual mode - (on/off). Manual or automatic measuring mode (see clause 2.2.3. Manual measuring)

2.2.2. (B) GPS measuring

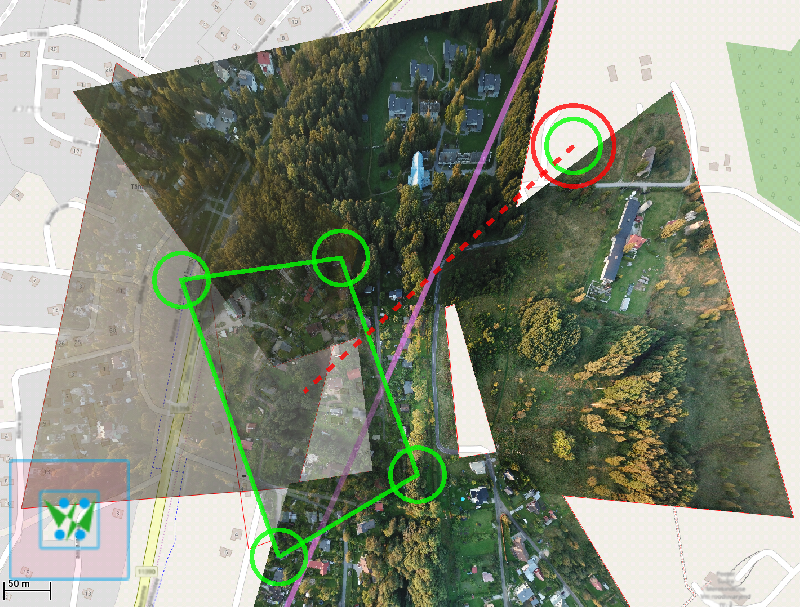

Launch GPS measurement. When using automatic area measurement mode, make sure that corner points are added. You can add GPS point manually by clicking the [+] button. To delete the last point, press [-] button. During measurements, you can take a break and continue with it later. You can take a break if you need to stop measurement or do other things: call, etc. You cannot change settings (frequency, allowed min distance and allowed accuracy) during the measurement. You can switch from manual or automatic mode to combined measuring. The measurement data is saved to the Measurements layer. You can delete the entire layer (in the main menu: info: delete: Measurements) or one item at a time. To delete one item, press the icon on the surface, and then delete it. You can export measurement data to a file(xyz.androt.vorona/export/kml) and it can later be opened (Menu: Info: Import)


• If GPS measuring provides bad results, you can manually reroute areas (see clause 2.2.3 Manual measuring)

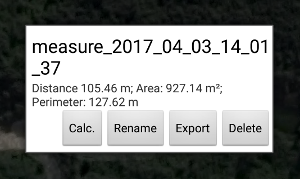

• To view measuring info, click on the item. The information displayed includes Distance (m), Area(m2) and Perimeter (m)



2.2.3. (B) Manual measuring

1. Center the map on your GPS location, 2. Put measurement on hold, 3. Delete the last point and



add a new one


1. Continue measuring, 2. Finish measuring and save/delete data


For manual measuring, you have to set up Preferences: Manual mode. Add a point to move the map and click on the button

 If the point added is in the wrong place, click the delete button [-]. To finish the measurement, click pause, then finish and save/delete data

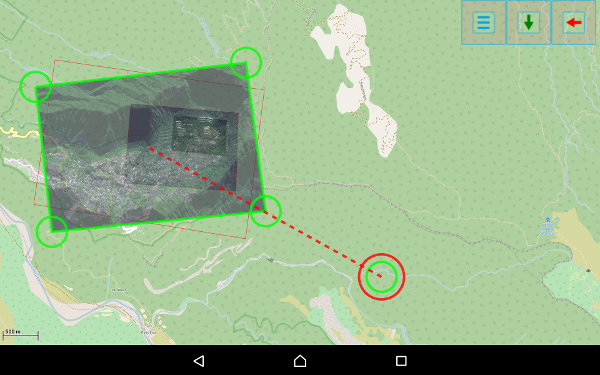

2.3. MapImages editor

Turn editor off

/on

Click on the image:



Menu:

• Visible Y/N
• Rename - change image name. You can later find it (Search: Address, place name, etc.)
• Transparency
• Altitude - MapImage order of play
• Rotate
• Scale
• Delete
• Reset – restore image to its original (imported) settings
• Info- MapImage atributes(JPG) info: location, altitude, direction to north, camera direction
  • Change MapImage atributes
• Export KMZ - exports images to .kml file(.../export/kmz/yymmddhhmmss|name.kmz). You can import it to Vorona Map or Google Earth

Search shared maps: Demo2 Grekio

Search shared maps: Demo3 Piramido



3. Map Menu

Map menu opens after pressing and holding the map for 3 seconds

• New

• New Home - determines home location
• New Point - adds a new point to the map. The point is represented by a location icon (in red, green, blue), time and memo. This information is stored on the device only and cannot be shared.
• (B) New shared point – this option is only available in map view and can only be opened within the frame of a window (max zoom level 8). If the service is unavailable, zoom in on the map. Shared points are represented by the icon

• (in red, green, blue), time and name. The name must be at least 4 characters long. If you want to make this point visible for you only, then type your password instead of a name. Shared areas are visible only for 10 days. Other users’ shared items can be found in the main menu: Search for: address, place name, etc.
• (B) New Shared MapImages – this option is available only in map view and can only be opened within the frame of a window (max zoom level 8). If the service is unavailable, zoom in on the map. The name must be at least 4 characters long. If you want to make this point visible for you only, then type your password instead of a name. Other users’ shared MapImages can be found in the main menu: Search for: address, place name, etc.
• Find the nearest address - Determine the nearest street address
• (B) Find my shared points - this option is available only in map view and can only be opened within the frame of a window (max zoom level 8). If the service is unavailable, zoom in on the map.
• Navigate – launches navigator

4. Map functions

Buttons appear after pressing and holding the screen and disappear again after 3 seconds.

• To zoom in click (+), to zoom out click (-)
• Item information and management. When you click an item (point, line, area) an information window appears, showing Distance (m), Area(m2) and Perimeter (m). You can Delete, Export (.kml), Rename and Calc. (recalculate measuring data)

• You can also start navigation from the information window.

5. Data and paths

Files path: xyz.androt.vorona/map

• /export
  • /kmz (yymmddhhmmss|name.kmz) - MapImage editor export
  • /kml (measureyymmddhhmmss|name.kml) - measured lines and areas
• /images (unic_nr|name.jpg, unic_nr|name.jpg, .json) - images folder
  • /archive (vorona_yy_mm_dd_hh_mm_ss.vorona|name.vorona)) - MapImages archive
• /archive (db_yy_mm_dd_hh_mm_ss.db.vorona) - All objects (measured, imported and manually added)
• /cache (cache_yy_mm_dd_hh_mm_ss.zip) - OSM map cache
• import
  • /map - shared MapImage temporary folder

Data groups:

• Archive
  • Points, lines, areas - All objects (measured, imported and manually added data)
  • MapImages - All MapImages
• Layers
  • My points - My points (excluding my shared points)
  • Imports - Imported objects (.kml,.gpx files)
  • Measurements - lines and areas
  • MapImages - Images on the map
• Map cache - OSM map cache
• Shared points - Shared points are represented by the icon (in red, green, blue), time and name. Shared points are visible for 10 days only

Demo:
Search shared maps: Demo1 Reunion, Demo2 Grekio, Demo3 Piramido

6. Shared MapImages Web interface

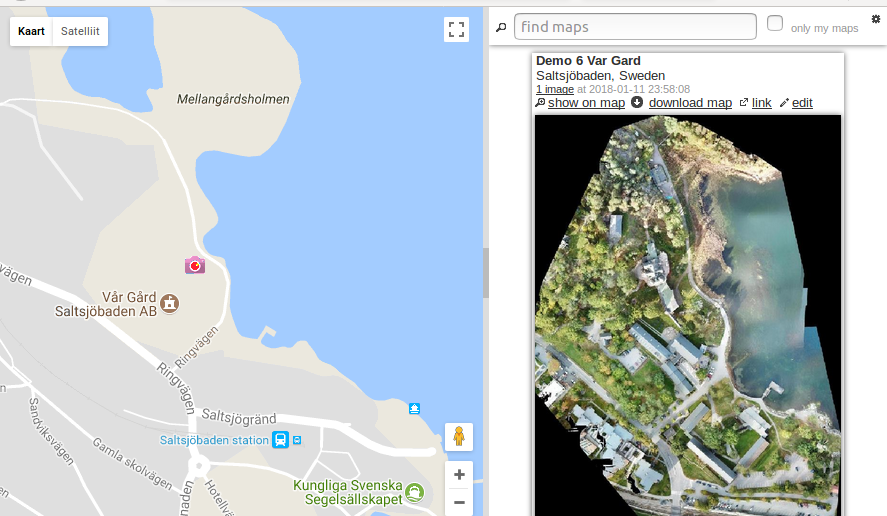

http://androt.xyz/voronamap/kmz



• MapImages location. Public Mapimages(Demo)
• Account: login, profile. New account will be created by app
• Find, Edit(name, description, url)
• Download KMZ files
• Import OpenAerialMap.org images to VoronaMap. Converter WMTS to KMZ

7. Release Notes & Privacy

Version:

• 13.01.2018 - 1.0.71
  • Shared MapImage Web interface (demo)
  • Shared MapImages (private, public)
  • Account (login, create, reset)
• 25.11.2017 - 1.0.67
  • Preferences, Realtime drone image import (DIJ Mavic, service);
  • Improved Import drone images (DJI Mavic, Parrot Bebop2)
  • Improved Shared MapImages search, new (in viewport, mark all,...);
  • Improved Archive MapImage (in viewport, mark all,...);
  • MapImage edit, select list (if not visible, grey)
  • MapImage edit, improved rotation
  • Bug fixes
• 10.09.2017 - 1.0.49
  • Added Import drone images
  • Default DJI drones(Mavic). Setup Drone Images path
  • Image(JPG) info: location, altitude, direction to north, camera direction
  • Supported Gimbal Pitch Degree 45-90
  • Improved MapImages editor
  • Restore/change JPG info
  • Improving MapImages performance
  • Bug fixes
• 10.04.2017 - 1.0.32 - First issue

Support email:

• support@androt.xyz
• powerandrot@gmail.com

The document was last modified 11.12.2017
Privacy & Terms
